Double Truss 40ft Series Container Canopy
Prices Start From
> Overview
The SkySheild™ 40-ft Series Double Truss Container Canopy (also called a conex canopy or container shelter) spans 40-ft clear width and is available in 40, 80, or 120-ft lengths. This makes it a compact yet versatile canopy solution, providing reliable coverage for industrial, construction, logistics, and agricultural sites.
Its double truss steel frame maximises load-bearing capacity, while the 900gsm fire-retardant PVC cover delivers long-lasting weather protection. Designed for rapid installation and easy relocation, SkySheild™ is ideal for sites requiring robust all-weather shelter without permanent foundations.
Every SkySheild™ canopy is CE certified EN 1090 and built in compliance with Eurocode wind and snow load standards, giving project managers the confidence needed for Tier-1 contractor and procurement approval.
> Key Benefits
- Scalable Footprints → 40-ft span with 40 / 80 / 120-ft lengths.
- Double Truss Strength → engineered to resist wind and snow loads.
- Multi-use Shelter → shipping container canopy, conex canopy, or container shelter.
- Relocatable → modular bolt-up design allows dismantling and re-use.
- Compliance Ready → CE EN 1090 certified with Eurocode design standards.
> Technical Specifications

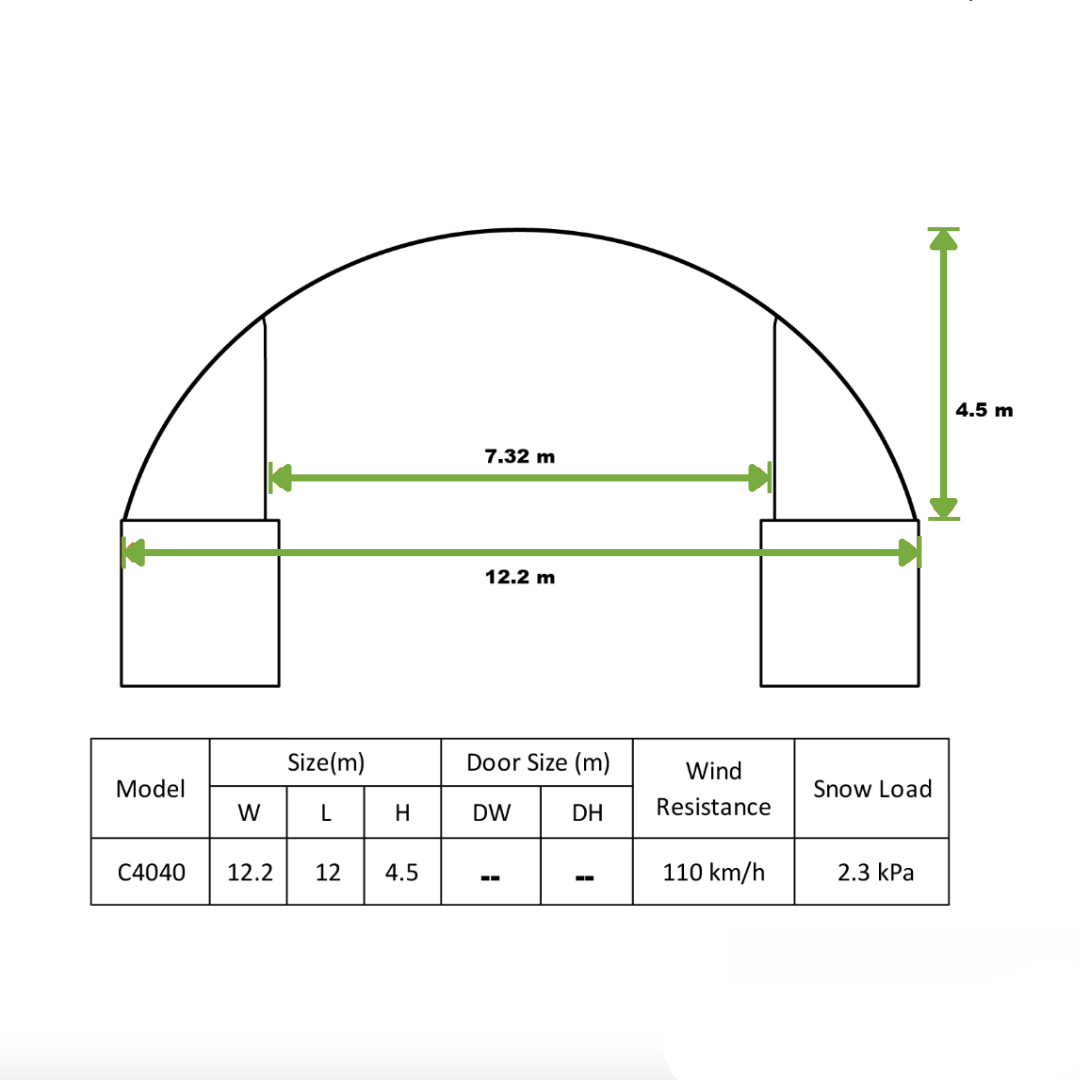

| Model | Dimensions (Span × Length) | Covered Area |
|---|---|---|
| SkySheild™ 40×40 | 40 ft × 40 ft (12.2 m × 12.2 m) | 1,600 ft² (149 m²) |
| SkySheild™ 40×80 | 40 ft × 80 ft (12.2 m × 24.4 m) | 3,200 ft² (297 m²) |
| SkySheild™ 40×120 | 40 ft × 120 ft (12.2 m × 36.6 m) | 4,800 ft² (446 m²) |
| Clear Span | 40 ft (no interior columns) |
|---|---|
| Frame | Galvanized double truss steel, CE certified EN 1090 |
| Fabric | 900gsm fire-retardant PVC (UV resistant, waterproof) |
| Eaves Height | ≈13–15 ft (site-specific) |
| Wind Rating | Up to 100–110 km/h (engineering dependent) |
| Snow Load | 0.5–0.6 kN/m² (region dependent) |
| Anchoring | ISO container twist-lock clamps or ballast blocks |
| Warranty | 5 years structural warranty |
> Use Cases
> Construction
> Agriculture
> Logistics Yards
> Industrial Workshops
> Installation & Delivery
- Delivered modular for efficient freight and quick build.
- Typical install: 2–3 days with telehandler or small crane.
- Anchoring via ISO container clamps or ballast blocks.
> FAQs
> Is the SkySheild™ 40-ft Series relocatable?
> Why double truss instead of single?
> What certifications does it meet?
> Which length is best for me?
